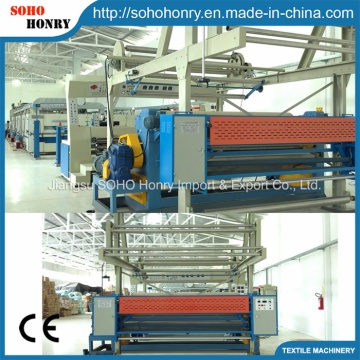

Heat setting stenter

Item Code: Features:
  • Description

1.PROCESS FLOW


Feeding frame -- Infrared centering device -- 2-bowl padder --  Lower overfeeding -- Manual weft staightening roller -- Expanding roller --  Upper overfeeding -- Infra-red selvedge sensing device -- Pin-on(or clipping)-- Inlet track -- Drying chambers -- Outlet track with air cooling -- Pin release (Clip release) -- Water cooling cylinder -- Rear over-feeding roller -- Plaiter



2. TECHNICAL SPECIFICATIONS


Machine width 1000~ 3400mm
Width adjustment range 900~3200mm
Mechanic speed 10~100 m/min
Overfeeding range -10% ~ +100%
Fabric held by Pin or Clip
Heating source Thermal oil,natural gas or electricity
Number of chambers 4~ 12 (each about 3m long)
Chamber temperature 100ºC ~ 220ºC (Depend on the temperature of thermal oil)
Selvedge detecting infrared selvedge-detecting with high accuracy

‚Äč

This machine is used for heat setting of woven and knitted fabric. After processed by this machine, users can get steady width and flat surface of fabric.

Thermal source:
Option 1 : natural gas
Option 2: steam
Option 3: thermal oil
