Sliver can

Item Code: Features:
  • Description

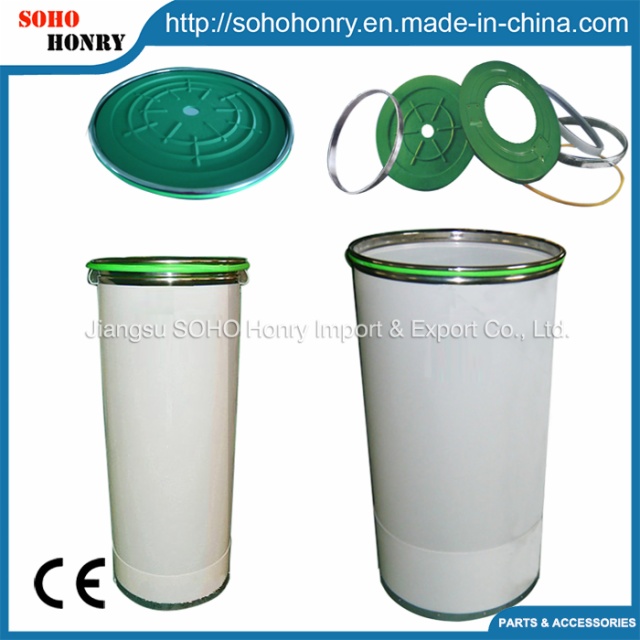

Product Features of Sliver Can:

 1,  Outside The Ring & Flowing Hoop   --- Top quality harden stainless steel is selected to make upper ring and hoop.

 2,  Sliver Can Body Material   --- HDPE(high density polystyrene)is selected to make the body of can, and
suitable amount of imported animistic agent is added and mixed.

The support plate is extruded into the shape by ABS engineering plastic,which has high strength,aging-proof and is plain without deformation.

3,  Sliver Can Spring   ---

Top quality carbon structural steel is used to make spring.


4,  Sliver Can Chassis & Wheel   ---The bottom plate is pressed and shaped hydraulically by cold-rolled steel plate,which has stable body,shock resistance and long service life.

The good quality wheel light and flexible, convenient to move.



Unit:mm

Din D1 D2 H1
9" 246 225 100
12" 326 300 100
14" 366 350 100
16" 416 400 150
18" 466 450 150
20" 526 500 200
24" 626 600 200
28" 728 700 300
32" 828 800 300
36" 930 900 300
40" 1030 1000 300
