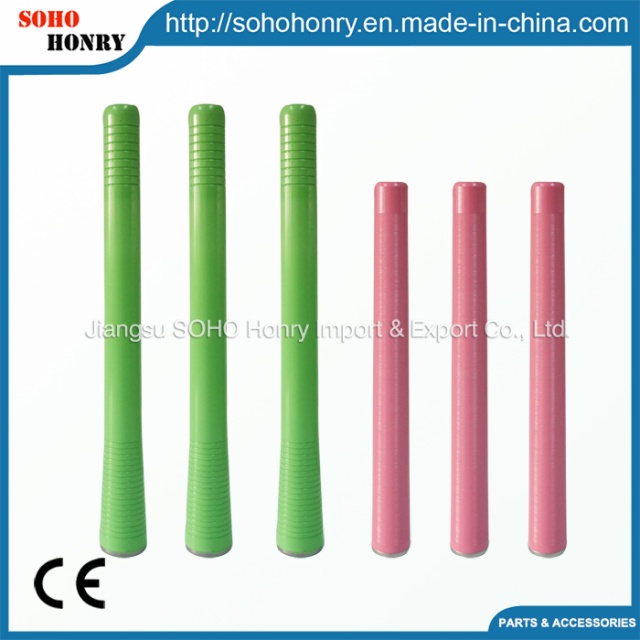

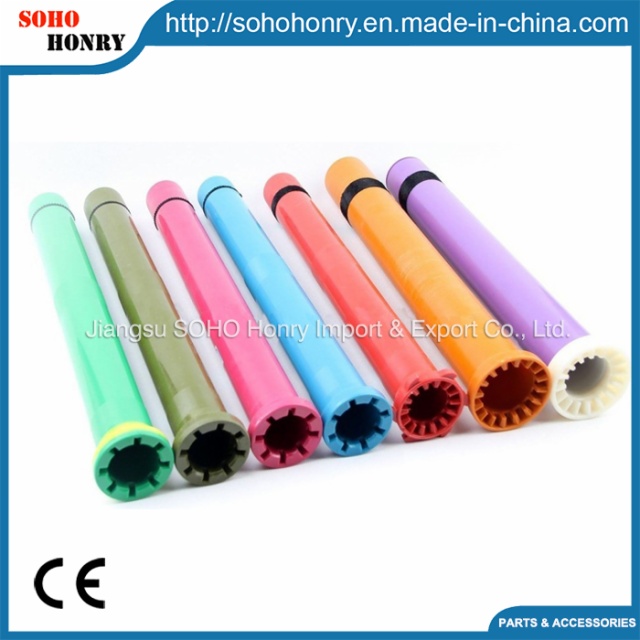

Product Features Of Ring Bobbin:
1) Our spinning bobbins are made from high molecular PC material and ABS.
2) Special specification of ring bobbin can be customized as per required sample and drawing from us.
3) The spinning bobbins with steel shield at bottom are suitable for high speed adopted type spindles.
|
S/NO. |
MAIN SIZES(MM) |
LIFT |
WT.(GMS)APPR. |
SPINDLE TYPE |
MATERIAL |
|
L |
A |
B |
C |
D |
E |
H |
|
RB01 |
180 |
17 |
19 |
25 |
16.35 |
62 |
148 |
6" |
40 |
D1201 |
PC |
|
RB02 |
180 |
17 |
19 |
25 |
16.35 |
62 |
151.5 |
6" |
40 |
DFG-2/DSG113 |
PC |
|
RB03 |
205 |
19.2 |
21 |
26 |
17 |
48.5 |
177.5 |
7" |
45/48 |
D3203/D1203 |
ABS/PC |
|
RB04 |
205 |
20 |
22 |
26 |
17 |
60.5 |
177.5 |
7" |
50 |
D3203/D1203 |
ABS |
|
RB05 |
210 |
20 |
22 |
25.5 |
17.9 |
48 |
174 |
7" |
48 |
TOYOTA |
ABS |
|
RB06 |
210 |
20 |
24 |
25.5 |
16.35 |
62 |
178.5 |
7" |
56 |
TOYOTA |
ABS |
|
RB07 |
210 |
20 |
22 |
25.5 |
17.9 |
46 |
177.5 |
7" |
50 |
TOYOTA |
ABS |
|
RB08 |
210 |
20 |
22 |
25.5 |
16.35 |
50 |
174 |
7" |
47 |
TOYOTA |
ABS |
|
RB09 |
230 |
20 |
22 |
26 |
17 |
60.5 |
177.5 |
8" |
55 |
D3203/D1203 |
ABS/PC |
|
RB10 |
232 |
20 |
23 |
27 |
17.9 |
52 |
187 |
8" |
62 |
TOYOTA |
ABS |
