Non-woven hot calender

Item Code: Features:
  • Description

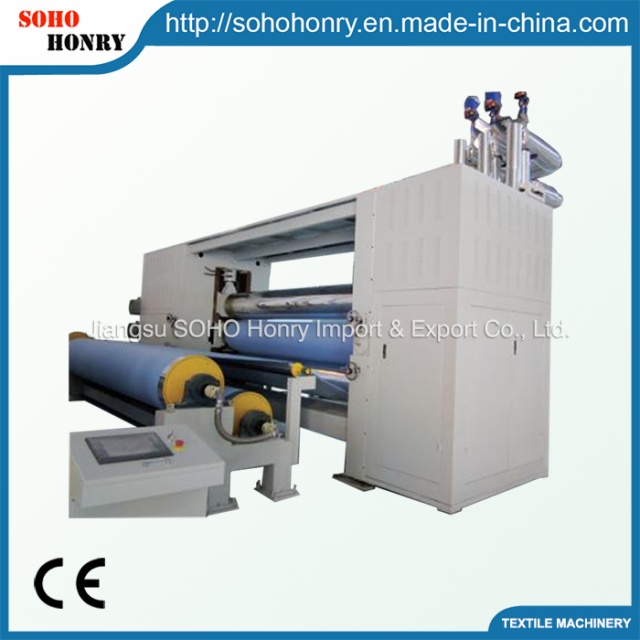

NON--WOVEN HOT CALENDER

Non--woven hot calender is used to calendar the non-woven material by high temperature and high pressure.



Pattern  2 vertical rollers or 3 vertical rollers and 2 sets of vertical rollers.
All of the rollers are metal roller
Transmission-type Drive by one roll or drive by two-rollers or drive by three-rollers
Steel wallboard wallboard in steel structure,by heat treatment and finish machining
Material of Roller high quality alloy steel
Nominal breadth(mm)  1000,1200,1400,1600,1800,2000,2200,2400,2600,2800
3000,3200,3400,3600
Running speed 0-40m/min
Heating Model independent systemof hot oil heating
Pressure Range 0-150kg(adjustable) linear pressure,hydraulic prssure control
Mode of speed regulation Stepless speed regulating with transducer
Outlet Model equip with  the equipment of wrapup and division
