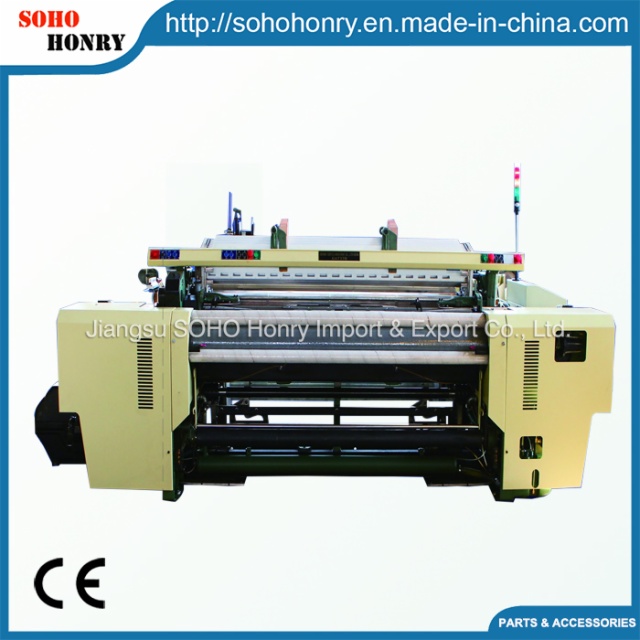

Rapier loom

Item Code: Features:
  • Description

Model NO.: GA737A/GA373B

Reed width:190cm,220cm, 240cm,280cm, 320cm, 380cm

Speed:220~380rpm

Counts of Yarn: Cotton: 5S~60S

Range of Weaving:Applicable for the weaving of various light and heavy cotton, ramie, silk and artificial fabrics.



Working range Cotton:5~60S  Filament:22D~2000D
Reed width (cm) Nominal:190, 220, 280, 340
Useful reeding width:reduct 0-60cm
Weft selection 8 colors, 6 colors,4 colors,2 colors,single color
Shedding Mechanic dobby or electronic dobby,
2~20 heald frames (according to customer's demands)
Let-off Flange diameter:800mm or 1000mm
Mechanical take-up
AC servo motor
Take-up AC servo motor
 Main bearing NSK brand
 Pattern repeat 5000picks
 PLC Omron brand


Working speed: around 380rpm for the loom with reed width 190cm
With independent selvedge motion
Way of impute and output of electric control: By touch screen
Tension detection: By stress and strain sensor
Improved back rest arrangement

Improved anti-starting mark function
Improved weft density range and accuracy
