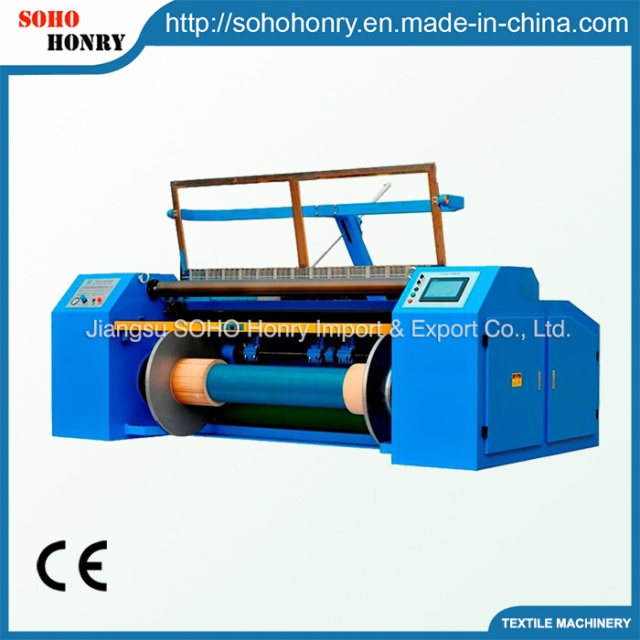

Batch warping machine

Item Code: Features:
  • Description

Main technological parameters:

Effective width: 1800mm, 2000mm ( Other width can be customized according to customers' requirements)
Dia. of beam flange: ø800mm, ø1000mm

Warping speed: 0-800m/min,stepless adjustable
Bobbin creel: heading 640, 720 (heads distance: 25cm x 25cm)



Main drive
Type belt wheel drives the beam straight
Motor power 3-phase AC motor , 15Kw
Converter power 18.5Kw
Speed 0-800m/min
Type of control  constant speed control



Beam doffing
Lifter   lifting arms driven by cyl. lift the beam
Clamping screw driven by motor makes beam clamped
Clamper teeth type
 Security  the screw locks itself after the up doffing
Guard           photo-electrical sensor



Beam pressed
Pressing type clamp damping type
Drive       cyl. drive
Sensor pressing roller
Press control type  precision reli



Reed
Loose and close adjust    low speed motor (auto)
Traverse type low speed motor (auto)
Moving Up/Down/Left/Right   By Motor
Cleaning wind  solenoid valve co



Brake
Beam Air-liquid clamp brake
Pressing roller  cyl. expansion or electrical adjusting
Guide roller clutch
Type three roller been braked synchronous
Feature    pressing roller leaves yarn instantly when being braked
Brake distance  ≤3m (500m/min)



Control system
Input voltage  3×380±10%
Main controller     Seimens S7200
Converter        ABB   550 serial
Button France TE
Pneumatics   Airtac
Touch  screen     Delta (10.1" Colorful sceen)
Approaching switch   Japan (Omron)
Encoder    Japan (Omron)



Bobbin creel
Style  small V type rotary
Nos. of Spindles 640 or 720 spindles
Distance spindle    250×250 mm basic type
Tensioner    two post
Auto-stop equipment    Infrared
Blow device   electronic fans
